Remote Control (sold separately):

REMOTE MH-10

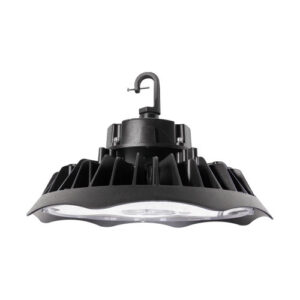

Compatible LED High Bays
(sold separately):

International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Wattage	1mW Max. (Transmitting Power) < 0.3W (Stand-by Power)
DC Input Voltage	12-24V DC ± 1V
Rated Voltage	12 or 24V
Working mode Output	0-10V DC
Dim Interface	1-10V Dimming < 50mA (Non-constant source)
Operating Frequency	5.8GHz ± 75 MHz, ISM Band
Lifetime	50000 hours
Grade of Protection	IP 65
Protection Class	Class II
Environment Requirement	Compliant to RoHS
Detection Angle	150° (wall mounting) 360° (ceiling mounting)
Hold Time	5S / 30S / 1min / 3min / 5min / 10min / 20min / 30min
Stand-by Dim Level	10% (1.4-1.6V) 20% (1.9-2.1V) 30% (2.9-3.1V) 50% (4.9-5.1V)
Stand-by Period	0s / 10S / 1min / 3min / 5min / 10min / 30min and so forth
Detection Area	25% / 50% / 75% / 100%
Daylight Sensor	5lux / 15Lux / 30Lux / 50Lux / 100lux / 150lux / Disable
Detection Radius	5-7m (mounting height 8m / Max. mounting height 15m)
Operating Temperature	-35°C ~ +55°C

Reviews

There are no reviews yet.

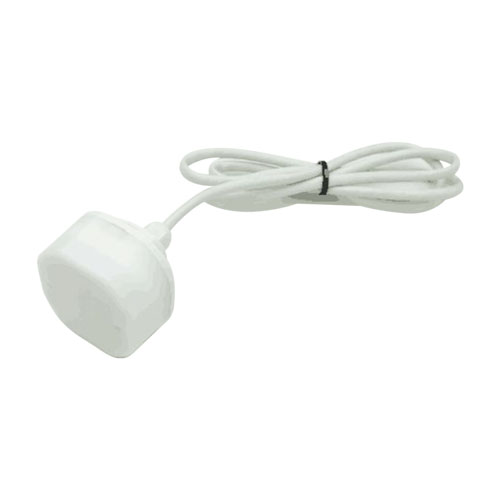

Be the first to review “UFOHB-SENSOR – Mini Microwave Sensor specifically eligible for UFOHBS-200W”
